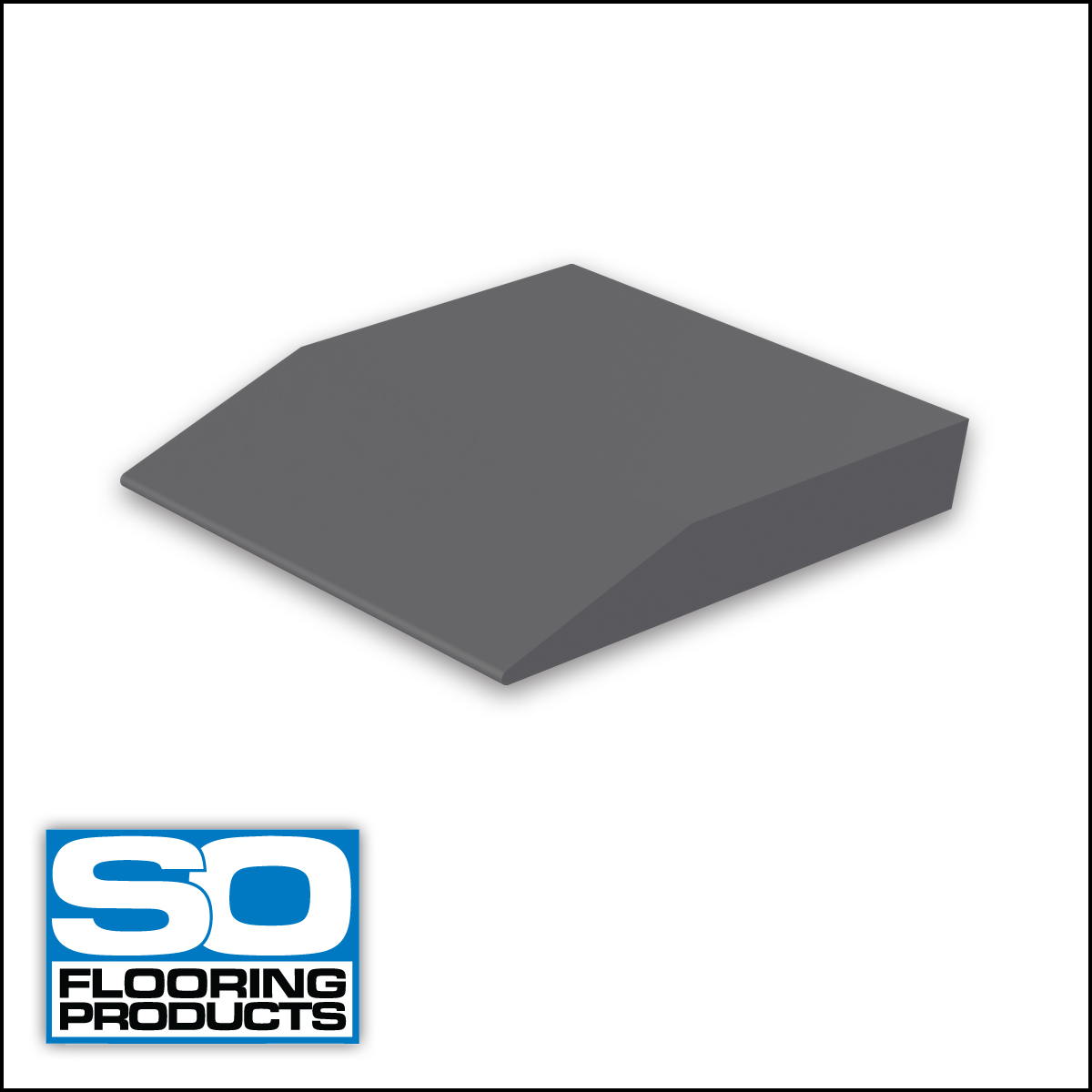

SO DIM 6

Type:Ramp Edge Trim
Width:40mm
Gauge:6mm
Length:2.0m
Colour:Black



Categories: , Tags: ,

Description

SO DIM 6 is a flexible PVC ramp edge profile which provides a neat and simple solution to joining floorcoverings of different heights. It is typically used to join carpet to terazzo or stone floors.
Suitable for use with 6mm carpet or carpet tile (compressed thickness). The compressed thickness of the carpet should be a flush finish to the gauge of the profile.

Technical Data

Type:Ramp Edge Trim
Environment:Interior
Used with:Carpet & Carpet Tile
Material:PVC
Width:40mm
Gauge:6mm
Length:2.0m
Colour:Black
Fixing:Adhesive Fix

SO DIM 6 – Data Sheet

Installation

SO DIM 6 ramp edge trim should be allowed to acclimatise for 24 hours prior to installation at an ambient temperature of 18° Celsius.

  1. It should be ensured that all surfaces to which the profile is to be fixed are dry, flat and
    free from any contaminants.
  2. Cut the profile to the size required.
  3. Apply a proprietary contact adhesive to the underside of the profile and the floor
  4. Allow the adhesive to become touch dry.
  5. Abutt the carpet up to the back of the profile ensuring the carpet is sealed if necessary
